GM LS3/LSA 6.2L TVS2650 HOT ROD KIT - LSA Drive - 10 Rib

GM LS3/LSA 6.2L TVS2650 HOT ROD KIT - LSA Drive - 10 Rib

LSX Concepts

SKU: 05-00-26-176-BL

Regular price $6,995.00 Sale

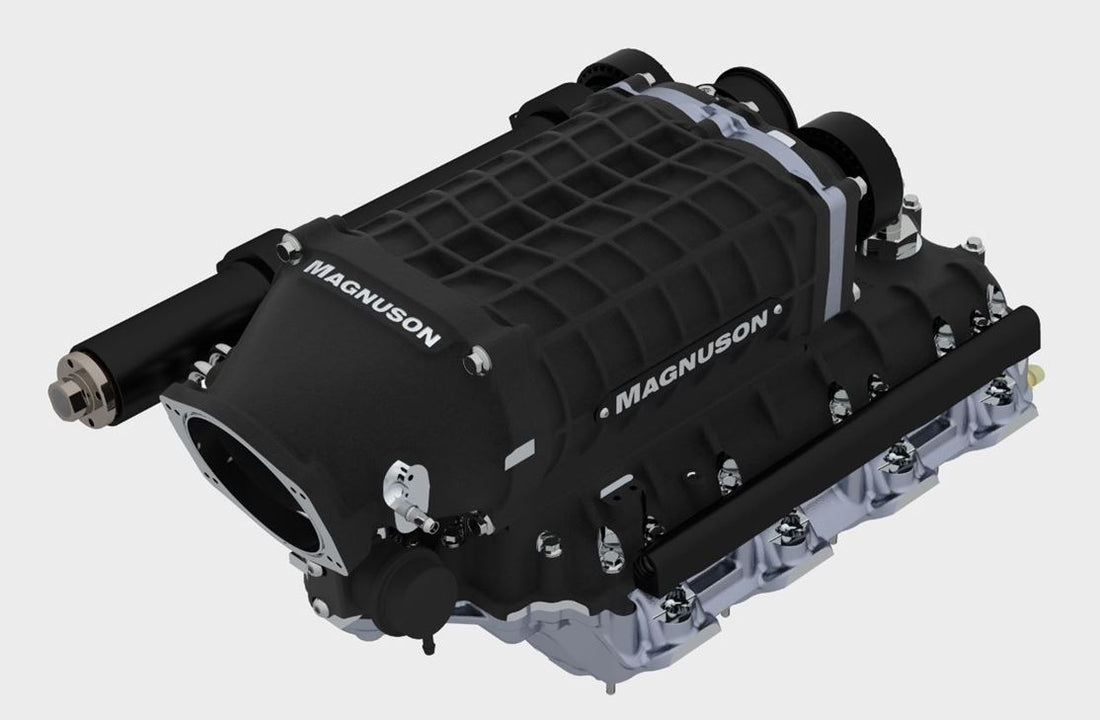

  • Magnuson TVS2650 Supercharger system complete with LS3 specific lower manifold, intercooler and jackshaft drive system
    • 2.65L displacement Roots-type supercharger with Eaton TVS(r) Technology comprising of the high helix, four-lobe rotors for maximum supercharger efficiency across entire speed range, capable of 24,000rpm and 2.4 pressure ratio
  • Patent-pending Supercharger housing designed to deliver huge airflow at high engine speeds for maximum horsepower levels
  • Quick change, cartridge style jackshaft system with high torque/low inertia carbon fiber driveshaft
  • High flow charge air cooler and massive 1-inch (-16ORB) ports reduce coolant restriction allowing maximum flow with extremely high cooling efficiency. The coolant ports accept most aftermarket fittings, allowing endless customizability
  • High flow inlet duct designed for electronic throttles with GM LT5 bolt pattern. Also works with Magnuson’s 109mm mechanical throttle body P/N 98-05-40-007. Also compatible with 112mm Nick Williams throttle body
  • Set up for port injection fuel system with hard anodized, extruded aluminum fuel rails with ½” thru bore. Does not include injectors or fuel crossovers
  • Includes press-on hub for 2-piece pulley (not included) and interchangeable rear cog belt system allowing for drive ratio optimization. Supplied with standard 32 and 34 tooth cogs for up to 6% overdrive of front pulley. Additional 30-38 cog tooth pulleys available in two tooth increments
  • Fast response, vacuum bypass system designed to unload supercharger at engine idle speeds and allow intercooled air to be recirculated through the supercharger for rapid cool down
