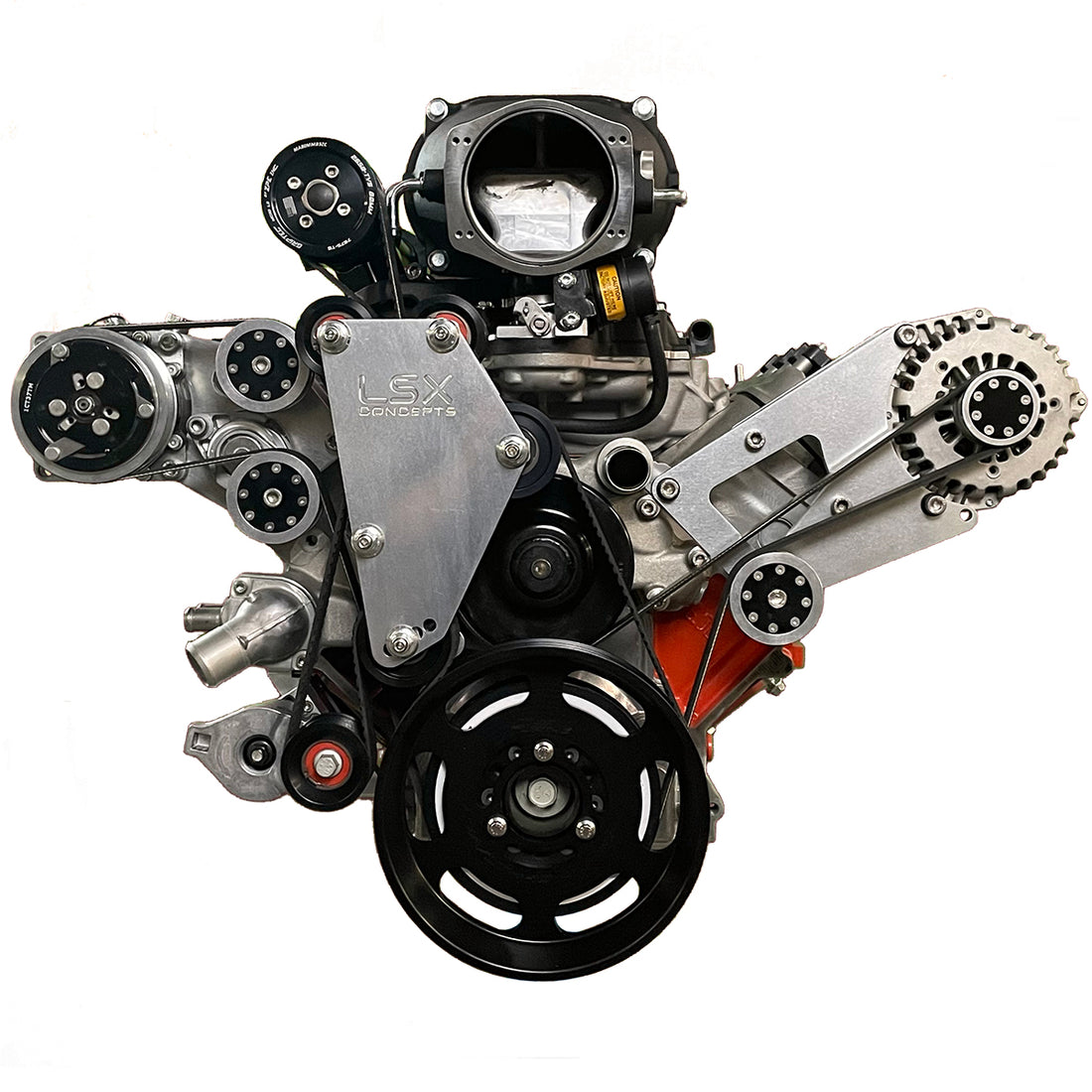

PROTOTYPE PICTURED FINAL PRODUCT WILL VARY IN APPEARANCE

LSA Supercharger Flex Drive Accessory System Bundle

Designed to drive Jackshaft Style Superchargers with LSA Offset

• Magnuson Hot Rod 2650

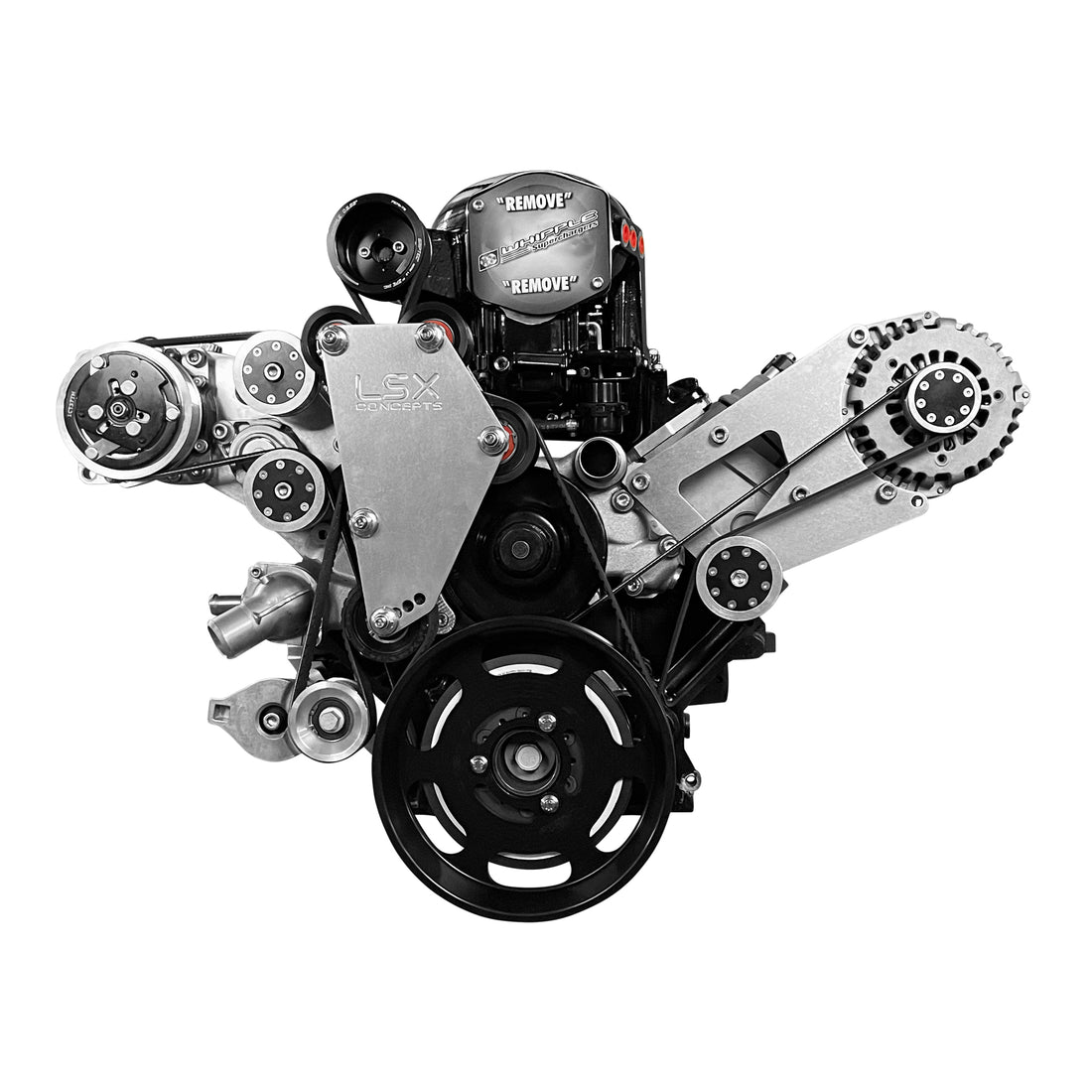

• 2.9 Universal WK-1810 Whipple with C/Z-Body (10+ Gen 5 Camaro) offset Supercharger (with our custom offset pulley which changes it to LSA offset)

• Got a jackshaft style supercharger not listed? Contact Us

  Features:

• The only High Mount A/C solution for Muscle cars using a dedicated supercharger 8,10 or 12 rib belt to drive the supercharger using a factory LSA tensioner
• Installs with no frame modifications on almost all early Muscle Cars
• Supports all overdrive Combination's with up to a 10.00 lower pulley

Installation Requirements (NOT INCLUDED IN KIT)

• Supercharger Pulley (Hot Rod / Whipple)
• ATI Super Damper
• Supercharger Crank Pulley
• Supercharger Serpentine Belt
• LSA/LS3 Water Pump

Additional Installation Requirements for the Whipple WK-1810

• 1/2 Manifold spacers required for the Whipple WK-1810 (supercharger has to be raised to clear the LSA/Zl1 water pump)
• Custom LSA Offset Pulley

Included in Bundle:

• Flex Drive System (Jackshaft Drive)

• LSA Tensioner
• High Mount Alternator Bracket
• High Mount A/C bracket
• GM Alternator
• AC Compressor

• 6 Rib Serpentine Belt (6PK2385)

Recommended Power levels

• 10 Rib - Up to 1000HP
• 12 Rib 1000+HP

Resources

• Instructions

  Whipple WK-1810 Additional Requirements:
• 1/2 Manifold spacers required for the Whipple WK-1810 (supercharger has to be raised to clear the LSA/Zl1 water pump)
• Accessories must use Corvette Offset
• 3.00 to 4.00 upper pulley (Custom LSA Offset -.140) * smaller upper pulleys may require idler plate modification - Click Here
