LSA Flex Drive High Mount Accessory Drive System (ALT,A/C) (Jackshaft Drive)

LSA Flex Drive High Mount Accessory Drive System (ALT,A/C) (Jackshaft Drive)

SKU: No reference assigned
Regular price

$2,405.00

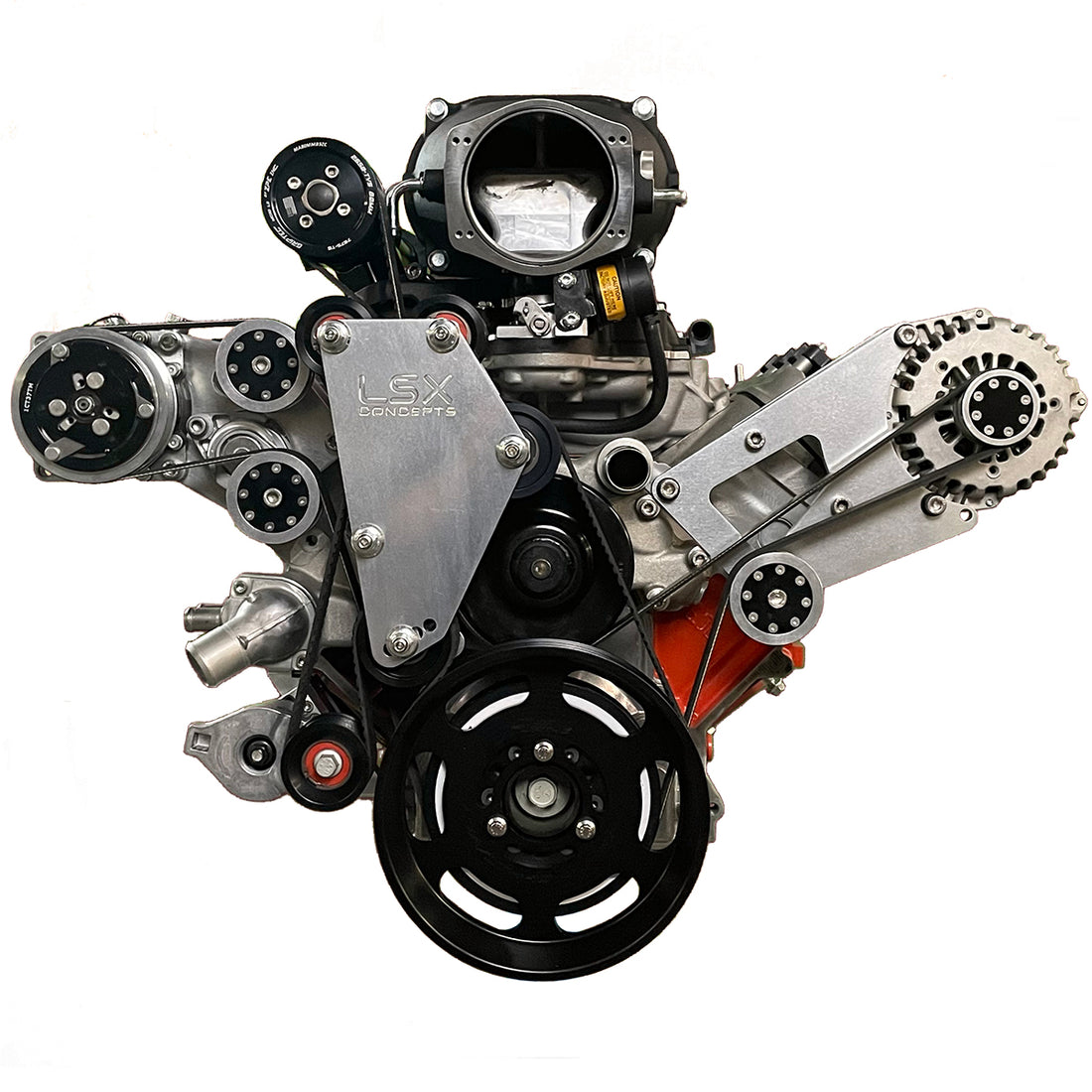

PROTOTYPE SHOWN FINAL PRODUCT MAY VARY FROM PICTURE

2650 Supercharger Flex Drive Accessory System (Complete Kit)

Designed to drive Jackshaft Style Superchargers with LSA Offset

  • Magnuson Hot Rod 2650
  • Whipple WK-1810 (with custom LSA offset pulley)
  • Got a jackshaft style supercharger not listed? Contact Us

  Features:

  • Computer Designed, Water jet profiled and CNC precision milled and drilled brackets from 6061-T6 billet aluminum
  • The only High Mount A/C solution for Muscle cars using a 10 Rib serpentine belt to drive the supercharger using a factory style tensioner
  • Installs with no frame modifications on 60's/70's Muscle Cars
  • Compatible with any overdrive combination with up to a 10.00 lower pulley

Package Deal Includes:

  • 10 Rib Flex Drive System
  • 10 LSA Tensioner
  • High Mount Alternator Bracket Kit
  • High Mount A/C bracket
  • GM Alternator
  • AC Compressor
  • 6 Rib Serpentine Belt

Installation Requirements (NOT INCLUDED IN KIT)

  • 10/12 Rib Supercharger Pulley
  • 10/12 Rib Crank Pulley
  • 10/12 Rib serpentine Belt
  • LSA/LS3 Water Pump (Click Here)
  • 1/2 Manifold spacers required for the Whipple WK-1810 (supercharger has to be raised to clear the LSA/Zl1 water pump)

Recommended Power levels

  • 1000+ HP

Resources

  • Instructions - Click here
  • Known/Proven Belt Combinations - Click here
